Premium All Position Radial
Well suited for all axle positions. All-position, all-steel, low-profile radial designed especially for demanding over the highway use.
APPLICATION | RECOMMENDED | SUITABLE |
REGIONAL | STEER, TRAILER | DRIVE |
URBAN | STEER, TRAILER | DRIVE |
17.5 & 19.5 | STEER, TRAILER | DRIVE |
![]() |
View all : "All Position Tires"
Does this tire fit your vehicle?
Features and Benefits
Sizes & Specifications
Warranty Details
Replace
• Wide-belt construction and a solid stable outer rib contribute to long and even wear.

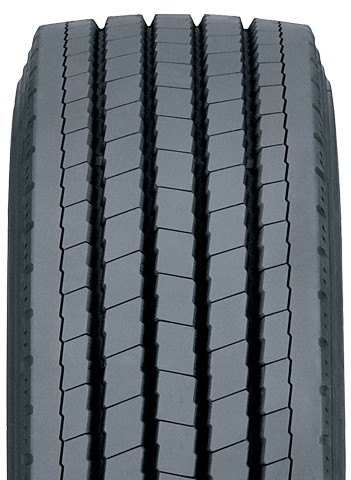

• Five rib, zig-zag pattern with deep tread depth.
• DSOC IITM technology optimizes design for even wear and long life.
• Four Steel Belt Construction (all 19.5” sizes) braces the tread area for improved mileage, resistance to irregular wear and reduced rolling resistance.
• Stone ejector grooves minimize stone retention to maintain casing integrity.
• Advanced casing design and compounding for extended casing life and retreadability.
Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
---|---|---|---|---|---|---|---|---|---|---|---|
215/75R17.5 | 126/124M | 306100 | 6.00-(6.00)-6.75 | 30.6 | 8.3 | BL | 16 | 423 | 3750/3530 | 105/105 | 17.5 |
Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
---|---|---|---|---|---|---|---|---|---|---|---|
265/70R19.5 | 140/138M | 562070 | 7.50-(7.50)-8.25 | 34.2 | 10.2 | BL | 16 | 378 | 5070/4675 | 110/110 | 19.5 |
285/70R19.5 | 145/143M | 562120 | 7.50-(8.25)-9.00 | 35 | 11.2 | BL | 17 | 368 | 6395/6005 | 125/125 | 19.5 |
TRUCK TIRE LIMITED WARRANTY AND CASING POLICY
Limited Warranty Manual - Medium Truck Tires
The Toyo M143 replaces the following commercial tire products:
Bridgestone R250F
Bridgestone R227F
Continental Hybrid HS3
Continental HSR1
Goodyear G129 RHSII
Goodyear G159A
Goodyear G647 RS AP
Michelin XZE/ XZE2/ 2+
Yokohama RY023
