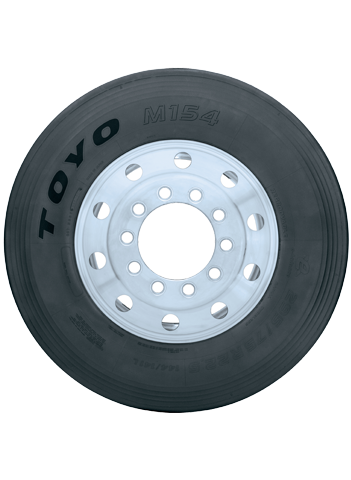

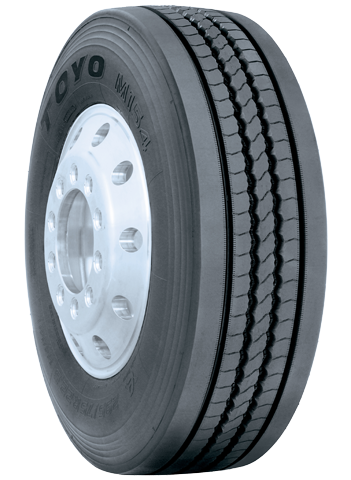

Premium Regional All-Position SteeR Radial
The M154 is a premium steer tire designed specifically for high scrub regional driving.
| APPLICATION | RECOMMENDED | SUITABLE |
| REGIONAL | STEER | DRIVE, TRAILER |
| URBAN | STEER | DRIVE, TRAILER |
| 17.5 & 19.5 | STEER | DRIVE, TRAILER |
  |
View all : "All Position Tires"
Does this tire fit your vehicle?
Features and Benefits
Sizes & Specifications
Warranty Details
Replace
Resists Irregular Wear for Longer Tread Life
• E-balance design provides even contact pressure distribution across the tread surface, resulting in smooth wear and long life.
• A deep full 22/32” tread depth (in most sizes) - addressing the demands of regional use and high-scrub applications.
Fuel Efficiency
• Product features include a stiffer belt package, stiffer bead construction, resulting in better performance and improved fuel economy.
Casing Durability and Enhanced Retreadability
• Special cap and base tread compound reduce heat at the belt and edge and excessive heat build-up inside the tire structure.
• E-balance profile minimizes growth of the tread profile and maintains uniform and flatter tread radius for the entire life of the casing
• E-balance improves profile retention by reducing strain at the belt edges and turn-up area in the bead.
Traction and Improved Performance
• 5 rib – four groove tread design for improved performance and traction on various road surfaces
• Deep sipes and multi-pitch grooves enhance wet traction
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 225/70R19.5 | 128/126N | 548860 | 6.00-(6.75)-6.75 | 32.1 | 8.3 | BL | 17 | 402 | 3970/3750 | 110/110 | 19.5 |
| 245/70R19.5 | 136/134N | 548840 | 6.75-(7.50)-7.50 | 33.3 | 9.6 | BL | 18 | 388 | 4940/4675 | 120/120 | 19.5 |
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 245/75R22.5 | 134/131L | 548770 | 6.75-(7.50)-7.50 | 37 | 9.5 | BL | 19 | 349 | 4675/4300 | 110/110 | 22.5 |
| 265/75R22.5 | 138/135L | 548760 | 7.50-(7.50)-8.25 | 38.4 | 10 | BL | 19 | 336 | 5205/4805 | 110/110 | 22.5 |
| 295/75R22.5 | 144/141L | 548250 | 8.25-(8.25)-9.00 | 40.4 | 11.1 | BL | 22 | 319 | 6175/5675 | 110/110 | 22.5 |
| 295/75R22.5 | 149/146L | 547990 | 8.25-(8.25)-9.00 | 40.4 | 11.1 | BL | 22 | 319 | 7160/6610 | 125/125 | 22.5 |
| 11R22.5 | 144/142L | 548330 | 7.50-(8.25)-8.25 | 41.5 | 11.1 | BL | 22 | 311 | 6175/5840 | 105/105 | 22.5 |
| 11R22.5 | 146/143L | 548310 | 7.50-(8.25)-8.25 | 41.5 | 11.1 | BL | 22 | 311 | 6610/6005 | 120/120 | 22.5 |
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 285/75R24.5 | 144/141L | 548260 | 7.50-(8.25)-9.00 | 41.5 | 10.8 | BL | 22 | 311 | 6175/5675 | 110/110 | 24.5 |
| 11R24.5 | 146/143L | 548300 | 7.50-(8.25)-8.25 | 43.5 | 11.1 | BL | 22 | 296 | 6610/6005 | 105/105 | 24.5 |
| 11R24.5 | 149/146L | 548290 | 7.50-(8.25)-8.25 | 43.5 | 11.1 | BL | 22 | 296 | 7160/6610 | 120/120 | 24.5 |
TRUCK TIRE LIMITED WARRANTY AND CASING POLICY
Limited Warranty Manual - Medium Truck Tires
The Toyo M154 replaces the following commercial tire products:
Bridgestone R268 Ecopia
Continental HSR2 Eco Plus
Goodyear G662 RSA FM
Goodyear G661 HSA
Michelin XZE/ XZE2
Michelin X-Multi Energy Z
Yokohama 103ZR
