Long-Haul Steer Tire
The M177 is a premium steer tire designed for long-haul highway operations. This e-low rolling resistant tire delivers high mileage, fuel efficiency and resists irregular wear.
| APPLICATION | RECOMMENDED | SUITABLE |
| LONG-HAUL | STEER | TRAILER |
View all : "All Position Tires"
Does this tire fit your vehicle?
Features and Benefits
Sizes & Specifications
Warranty Details
Replace
Resists Irregular Wear for Longer Tread Life
• High miles per 32nd due to an improved footprint, with top Differential Groove™ that minimizes irregularwear and a deep 18/32” tread for improved mileage.
Fuel Efficiency
• Low-rolling-resistance tread compound minimizes fuel consumption and qualifies it as a SmartWay-verified steer tire.
Traction and Reduced Road Noise

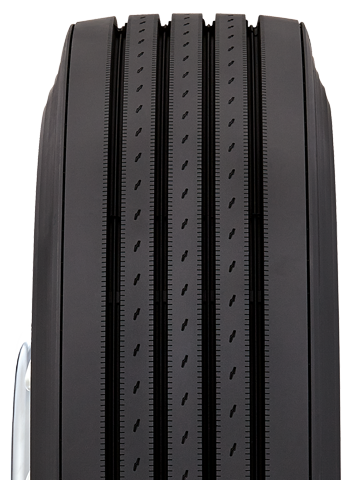

• Computer-optimized tread design with four straight grooves, deep sipes, and multi-pitch grooves provides enhanced wet and dry traction while reducing road noise.
Casing Durability and Enhanced Retreadability
• E-balance profile minimizes growth of the tread profile and maintains uniform and flatter tread radius for the entire life of the casing.
• High-elongation top belt protects casing integrity.
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 295/75R22.5 | 144/141L | 547090 | 8.25-(8.25)-9.00 | 40.1 | 11.2 | BL | 18 | 322 | 6175/5675 | 110/110 | 22.5 |
| 295/75R22.5 | 149/146L | 547130 | 8.25-(8.25)-9.00 | 40.1 | 11.2 | BL | 18 | 322 | 7160/6610 | 125/125 | 22.5 |
| 11R22.5 | 144/142L | 547270 | 7.50-(8.25)-8.25 | 41.3 | 11.1 | BL | 18 | 313 | 6175/5840 | 105/105 | 22.5 |
| 11R22.5 | 146/143L | 547280 | 7.50-(8.25)-8.25 | 41.3 | 11.1 | BL | 18 | 313 | 6610/6005 | 120/120 | 22.5 |
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 285/75R24.5 | 144/141L | 547180 | 7.50-(8.25)-9.00 | 41.4 | 10.9 | BL | 18 | 312 | 6175/5675 | 110/110 | 24.5 |
| 285/75R24.5 | 147/144L | 547170 | 7.50-(8.25)-9.00 | 41.4 | 10.9 | BL | 18 | 312 | 6780/6175 | 120/120 | 24.5 |
| 11R24.5 | 146/143L | 547290 | 7.50-(8.25)-8.25 | 43.3 | 11.1 | BL | 18 | 298 | 6610/6005 | 105/105 | 24.5 |
| 11R24.5 | 149/146L | 547400 | 7.50-(8.25)-8.25 | 43.3 | 11.1 | BL | 18 | 298 | 7160/6610 | 120/120 | 24.5 |
TRUCK TIRE LIMITED WARRANTY AND CASING POLICY
Limited Warranty Manual - Medium Truck Tires
The Toyo M177 replaces the following commercial tire products:
Bridgestone R287 Ecopia
Continental Eco Plus H3
Continental HSL 2 Eco Plus
Goodyear G399A LHS Fuel Max
Michelin XZA3+ Evertread
Yokohama 101ZL
Yokohama RY617
