Regional to Urban Wide Base Tire

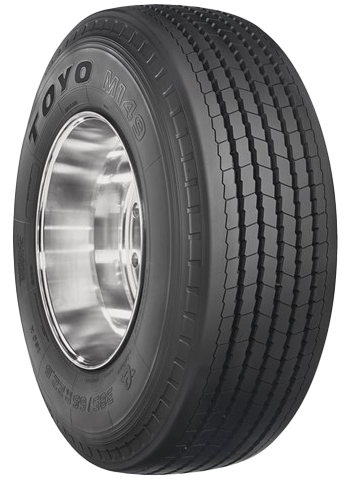

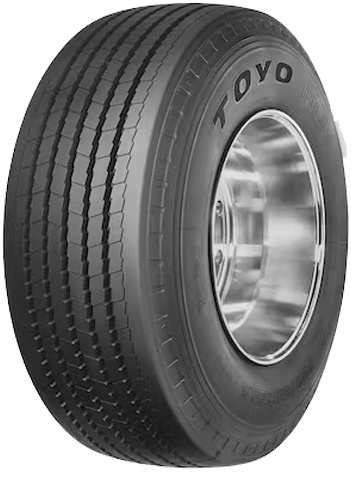

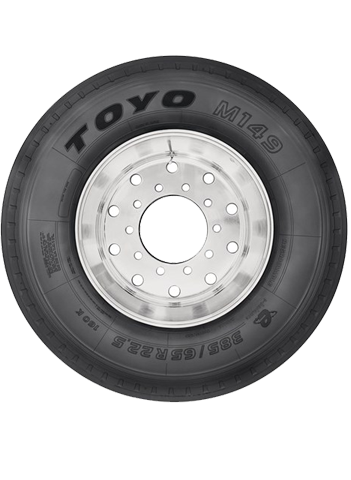

The M149 is an all-position wide base tire designed to deliver improved wear in tough operations, ranging from urban front axles to long-haul trailers.
APPLICATION | RECOMMENDED | SUITABLE |
REGIONAL | STEER, TRAILER | DRIVE |
URBAN | STEER, TRAILER | DRIVE |
![]() |
View all : "All Position Tires"
Does this tire fit your vehicle?
Features and Benefits
Sizes & Specifications
Warranty Details
Replace
• Six straight and stiff ribs provide smooth wear and long life.
• High-stiffness bead filler for improved sidewall durability.
• Exceptional uniformity and balance contributes to a smooth ride.
• Optimized profile minimizes casing growth of the tread area for increased mileage.
• Five wide grooves with siping on ribs provide enhanced wet traction.
• Wide steel-belt construction braces the tread area, improving durability, while high-elongation top belt protects the casing.
Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) | Rim Diameter |
---|---|---|---|---|---|---|---|---|---|---|---|
385/65R22.5 | 160K | 562010 | 11.75-(11.75)-12.25 | 42.5 | 14.8 | BL | 20 | 304 | 9920 | 130 | 22.5 |
425/65R22.5 | 165K | 562090 | 12.25-(12.25)-14.00 | 44.7 | 16.3 | BL | 21 | 288 | 1400 | 120 | 22.5 |
TRUCK TIRE LIMITED WARRANTY AND CASING POLICY
Limited Warranty Manual - Medium Truck Tires
The Toyo M149 replaces the following commercial tire products:
Bridgestone R244
Continental HTR2
MICHELIN XFE
Yokohama RY253
