Performance Ratings
Premium high performance tire for SUVs, sport trucks and select crossovers

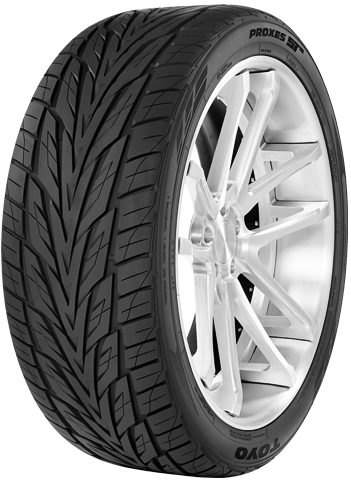

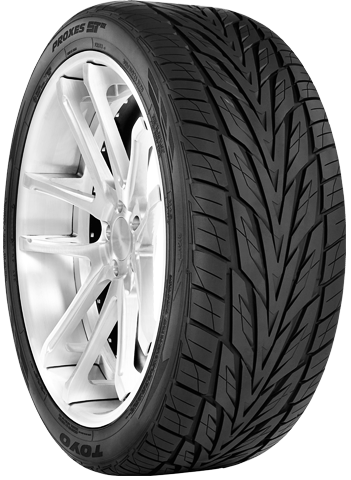

The Toyo Proxes ST III is the perfect balance of dynamic looks and sport oriented performance for sport trucks, SUVs and Crossover vehicles. Combining enhanced traction and handling, not only on dry roads but in the wet as well... while adding style and great looks to any vehicle.
Performance Ratings
LARGE EVACUATION GROOVES
- Enhances all season traction by improving water and slush drainage.
Image:
LARGE OUTER BLOCKS
- Improves the tires rigidity for better traction and cornering.
- The slight incline angle reduces deformation during braking for a firmer grip.
Image:
ARROWHEAD TAPER
- Maximize the block rigidity for better dry performance.
- The specific angle improves all season performance.
Image:
OFFSET “ANGLED” BLOCKS
- Maximize the block rigidity for better dry performance.
- The specific angle improves all season performance.
Image:
MULTI WAVE SIPES
- Minimize irregular wear for a smooth, quiet ride.
- Increases all season traction.
Image:
2 CIRCUMFERENTIAL GROOVES
- Helps evacuate water and slush for added traction during inclement weather.
Image:
OFFSET BLOCK PATTERN
- Offsetting the blocks reduces tread noise for a quieter more comfortable ride.
Image:
LIGHTNING GROOVES
- For a unique attractive look.
- Helps remove water from the center of the tread for better traction.
Image:
TWO LATERAL GROOVES
- Improves water and slush evacuation to reduce the risk of hydroplaning.
Image:
DIRECTIONAL TREAD PATTERN
- For improved performance on dry roads.
Increased traction on wet roads.
Image:
ADVANCED COMPOUNDS
- Tread compound contains silica for improved traction on wet and dry roads, while an advanced polymer and dispersion method improves traction and reduces rolling resistance.
Image:
ADVANCED CONSTRUCTION
- Build to handle the added weight handling characteristics of SUVs, crossovers and sport trucks.
Image:
| Tire Size | Load/Speed | Product Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| 215/65R16XL | 102V | 247000 | 6.0-(6.5)-7.5 | 27 | 8.7 | BL | 10 | 478 | 1874 | 50 |
| 235/60R16XL | 104V | 247040 | 6.5-(7.0)-8.5 | 27.1 | 9.4 | BL | 10 | 477 | 1984 | 50 |
| 225/65R17XL | 106V | 247080 | 6.0-(6.5)-8.0 | 28.5 | 9 | BL | 10 | 453 | 2094 | 50 |
| 235/65R17XL | 108V | 247560 | 6.5-(7.0)-8.5 | 29.1 | 9.4 | BL | 10 | 444 | 2205 | 50 |
| 215/60R17XL | 100V | 247540 | 6.0-(6.5)-7.5 | 27.2 | 8.7 | BL | 10 | 475 | 1764 | 50 |
| 225/60R17XL | 103V | 247480 | 6.0-(6.5)-8.0 | 27.6 | 9 | BL | 10 | 467 | 1929 | 50 |
| 255/60R17 | 110V | 247090 | 7.0-(7.5)-9.0 | 29.1 | 10.2 | BL | 10 | 444 | 2337 | 50 |
| 275/60R17 | 110V | 247060 | 7.5-(8.0)-9.5 | 30 | 11 | BL | 10 | 430 | 2337 | 51 |
| 275/55R17 | 109V | 247520 | 7.5-(8.5)-9.5 | 28.9 | 11.2 | BL | 10 | 447 | 2271 | 51 |
| 235/65R18XL | 110V | 247510 | 6.5-(7.0)-8.5 | 30 | 9.4 | BL | 10 | 430 | 2337 | 50 |
| 235/60R18XL | 107V | 247120 | 6.5-(7.0)-8.5 | 29.1 | 9.4 | BL | 10 | 444 | 2149 | 50 |
| 245/60R18 | 105V | 247530 | 7.0-(7.0)-8.5 | 29.6 | 9.8 | BL | 10 | 437 | 2039 | 51 |
| 245/60R18 | 105V | 247140 | 7.0-(7.0)-8.5 | 29.6 | 9.8 | BL | 10 | 437 | 2039 | 51 |
| 255/60R18XL | 112V | 247150 | 7.0-(7.5)-9.0 | 30 | 10.2 | BL | 10 | 430 | 2469 | 50 |
| 265/60R18 | 114V | 247160 | 7.5-(8.0)-9.5 | 30.5 | 10.7 | BL | 10 | 423 | 2601 | 50 |
| 285/60R18XL | 120V | 247590 | 8.0-(8.5)-10.0 | 31.5 | 11.5 | BL | 10 | 410 | 3086 | 50 |
| 225/55R18XL | 102V | 247580 | 6.0-(7.0)-8.0 | 27.8 | 9.2 | BL | 10 | 465 | 1874 | 50 |
| 255/55R18XL | 109V | 247570 | 7.0-(8.0)-9.0 | 29 | 10.4 | BL | 10 | 445 | 2271 | 50 |
| 295/45R18XL | 112V | 247180 | 9.5-(10.0)-11.0 | 28.5 | 11.7 | BL | 10 | 454 | 2469 | 50 |
| 225/55R19 | 99V | 247490 | 6.0-(7.0)-8.0 | 28.8 | 9.2 | BL | 10 | 449 | 1709 | 51 |
| 235/55R19 | 105V | 247190 | 6.5-(7.5)-8.5 | 29.2 | 9.6 | BL | 10 | 442 | 2039 | 50 |
| 255/55R19XL | 111V | 247210 | 7.0-(8.0)-9.0 | 30 | 10.4 | BL | 10 | 430 | 2403 | 50 |
| 255/50R19XL | 107V | 247200 | 7.0-(8.0)-9.0 | 29.1 | 10.4 | BL | 10 | 444 | 2149 | 50 |
| 235/55R20 | 105V | 247220 | 6.5-(7.5)-8.5 | 30.2 | 9.6 | BL | 10 | 428 | 2039 | 50 |
| 275/55R20 | 117V | 247030 | 7.5-(8.5)-9.5 | 31.9 | 11.2 | BL | 10 | 405 | 2833 | 50 |
| 275/55R20XL | 117V | 247500 | 7.5-(8.5)-9.5 | 31.9 | 11.2 | BL | 10 | 405 | 2833 | 50 |
| 245/50R20 | 102V | 247010 | 7.0-(7.5)-8.5 | 29.7 | 10 | BL | 10 | 435 | 1874 | 51 |
| 255/50R20XL | 109V | 247240 | 7.0-(8.0)-9.0 | 30.1 | 10.4 | BL | 10 | 429 | 2271 | 50 |
| 265/50R20 | 111V | 247260 | 7.5-(8.5)-9.5 | 30.5 | 10.9 | BL | 10 | 424 | 2403 | 50 |
| 285/50R20XL | 116V | 247280 | 8.0-(9.0)-10.0 | 31.3 | 11.7 | BL | 10 | 413 | 2756 | 50 |
| 305/50R20XL | 120V | 247310 | 8.5-(9.5)-11.0 | 32 | 12.4 | BL | 10 | 403 | 3086 | 50 |
| 255/45R20 | 105V | 247230 | 8.0-(8.5)-9.5 | 29.1 | 10 | BL | 10 | 444 | 2039 | 50 |
| 265/45R20 | 108V | 247250 | 8.5-(9.0)-10.0 | 29.4 | 10.5 | BL | 10 | 439 | 2205 | 50 |
| 275/45R20XL | 110V | 247600 | 8.5-(9.0)-10.5 | 29.8 | 10.7 | BL | 10 | 434 | 2337 | 50 |
| 295/45R20 | 114V | 247300 | 9.5-(10.0)-11.0 | 30.5 | 11.7 | BL | 10 | 424 | 2601 | 50 |
| 275/40R20 | 106W | 247020 | 9.0-(9.5)-11.0 | 28.7 | 10.9 | BL | 10 | 451 | 2094 | 50 |
| 295/40R20 | 110V | 247290 | 10.0-(10.5)-11.5 | 29.3 | 11.9 | BL | 10 | 441 | 2337 | 50 |
| 315/35R20 | 110W | 247320 | 10.5-(11.0)-12.5 | 28.7 | 12.6 | BL | 10 | 451 | 2337 | 50 |
| 295/35R21XL | 107W | 247650 | 10.0-(10.5)-11.5 | 29.1 | 11.9 | BL | 10 | 444 | 2149 | 50 |
| 285/45R22 | 114V | 247370 | 9.0-(9.5)-10.5 | 32.1 | 11.2 | BL | 10 | 402 | 2601 | 50 |
| 305/45R22XL | 118V | 247610 | 9.5-(10.0)-11.5 | 32.8 | 11.9 | BL | 10 | 393 | 2910 | 50 |
| 265/40R22 | 106W | 247340 | 9.0-(9.5)-10.5 | 30.4 | 10.7 | BL | 10 | 425 | 2094 | 50 |
| 285/40R22 | 110V | 247360 | 9.5-(10.0)-11.0 | 31 | 11.4 | BL | 10 | 416 | 2337 | 50 |
| 305/40R22 | 114V | 247400 | 10.0-(11.0)-12.0 | 31.6 | 12.3 | BL | 10 | 408 | 2601 | 50 |
| 265/35R22XL | 102W | 247550 | 9.0-(9.5)-10.5 | 29.3 | 10.7 | BL | 10 | 440 | 1874 | 50 |
| 285/35R22 | 106W | 247350 | 9.5-(10.0)-11.0 | 29.9 | 11.4 | BL | 10 | 432 | 2094 | 50 |
| 295/35R22 | 108W | 247390 | 10.0-(10.5)-11.5 | 30.1 | 11.9 | BL | 10 | 429 | 2205 | 50 |
| 295/30R22XL | 103W | 247380 | 10.0-(10.5)-11.0 | 29 | 11.9 | BL | 10 | 445 | 1929 | 50 |
| 335/25R22XL | 105W | 247420 | 11.5-(12.0)-12.5 | 28.6 | 13.5 | BL | 10 | 451 | 2039 | 50 |
| 285/40R24XL | 112V | 247430 | 9.5-(10.0)-11.0 | 33 | 11.4 | BL | 10 | 391 | 2469 | 50 |
| 285/35R24 | 108W | 247460 | 9.5-(10.0)-11.0 | 31.9 | 11.4 | BL | 10 | 405 | 2205 | 50 |
| 305/35R24XL | 112W | 247450 | 10.0-(11.0)-12.0 | 32.4 | 12.3 | BL | 10 | 398 | 2469 | 50 |
| 295/30R24XL | 104W | 247440 | 10.0-(10.5)-11.0 | 31 | 11.9 | BL | 10 | 416 | 2039 | 50 |
Toyo Tires warranty program
PASSENGER & P-METRIC LIGHT TRUCK TIRE LIMITED WARRANTY- complete details
Proxes ST III
Vehicle fitments for the Proxes ST III include the following makes and models:
- Cadillac Escalade
- Cadillac Escalade EXT
- Chevrolet Suburban
- Chevrolet Tahoe
- Chevrolet Silverado
- Dodge Durango
- Dodge Nitro Dodge Ram 1500
- Ford Expedition
- Ford F-150
- GMC Yukon
- Infiniti QX56
- Jeep Commander
- Lexus LX 470
- Lexus RX330
- Mercedes-Benz ML320
- Mercedes-Benz ML430
- Nissan Murano
- Nissan Pathfinder
- Nissan Titan
- Toyota Land Cruiser
- Toyota 4Runner
- Toyota Tacoma X-Runner
- Volvo XC70
- Volvo XC90
- OE fitments for
- BMW X5
- Infiniti FX35
- Infiniti FX45;
- Land Rover Range Rover
- Porsche Cayenne
- Volkswagen Touareg
